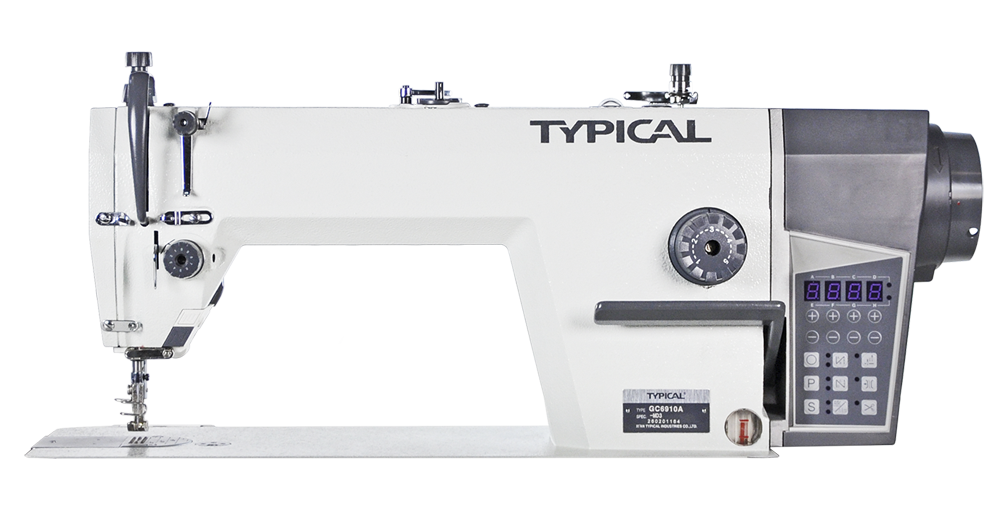

TYPICAL 6910A-HD3 automatic one needle lockstitch with direct-drive

ENERGY SAVING MOTOR AND DIRECT-DRIVE

Energy saving motor is built in machine’s head. It uses less energy in comparison to clutch motor. It is possible because motor takes energy only during sewing. It improves work comfort, because lockstitch works quieter. Vibration er also reduced in comparison to older machines.

AUTOMATIC ENCLOSED LUBRICATION SYSTEM

Automatic enclosed lubrication system is more economical in comparison to opened oil system. It prevents oil leak.

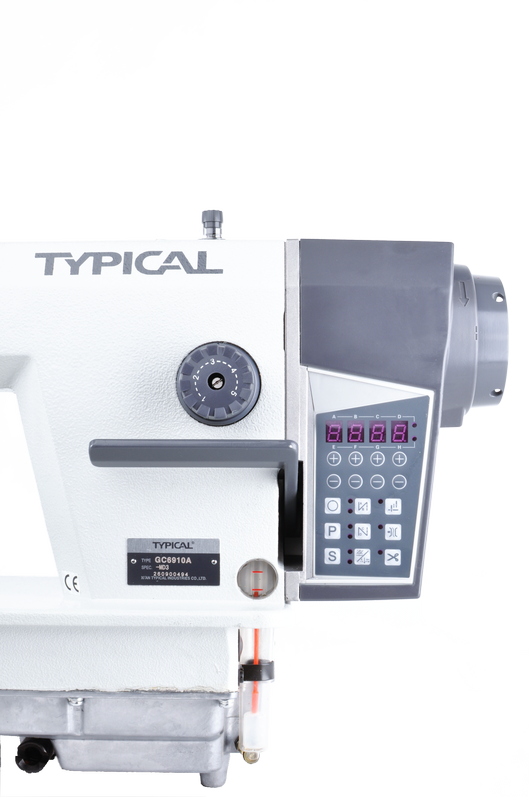

ADDITIONAL FUNCTION BUTTONS

There are two function buttons integrated witg machine head, one for bartacking and one for needle positioning. Functions are programming with electronic control panel.

BUILT IN LED LIGHT

LED light, built in machine head, improves every day work, because precisely illuminates the work area.

Parameters

EDGE CUTTER:
yes

AUTOMATIC PRESSER FOOT LIFT:
yes

AUTOMATIC BACK TACK:
yes

MAX STITCH LENGTH:
7mm

MAX SEWING SPEED:
4000

CLEARANCE UNDER SEWING FOOT:
13mm

DRIVE:
Direct-drive

Nipper:
yes

CONTROL PANEL:
yes

CLEARANCE UNDER THE ARM:
260x130 mm

ENGINE:
ENERGY SAVING

NEEDLE STROKE:
35mm

NEEDLE SYSTEM:
134/DPx5, 100-140 Nm

LUBRICATION SYSTEM:
AUTOMATIC/CLOSED

TRANSPORT TYPES:
Feed

STITCH TYPE:
Lockstitch 301

Applicatione

Baseball Jacket

Jacket

Jeans

Sport Jacket

Technical textiles

Woman Jacket
