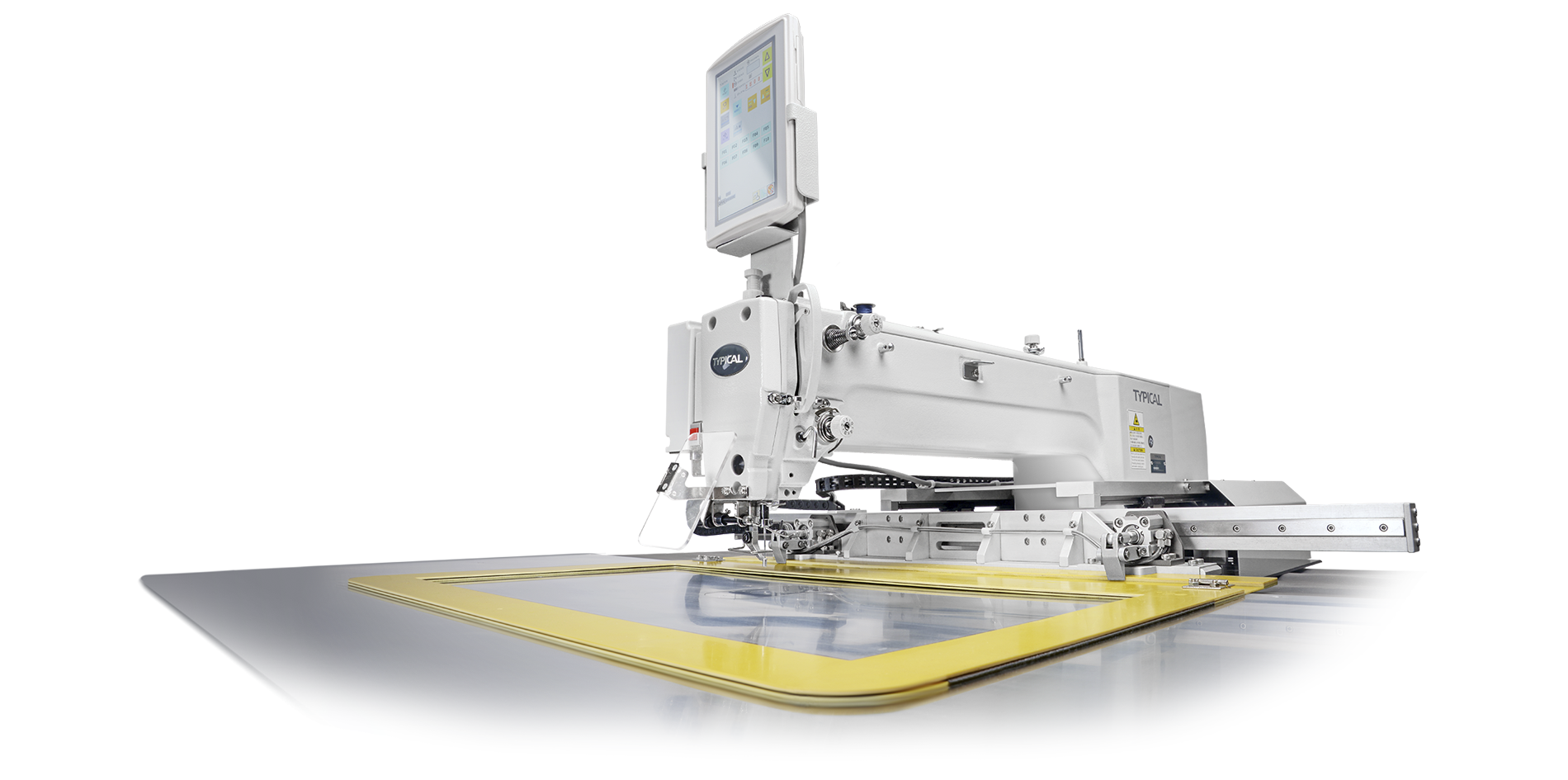

TYPICAL TC6040G electronic lockstitch pattern sewing machine with 600x400mm work surface

The device is designed to work with light, medium and heavy materials. It works well in factories with a different profile of activity, both in sewing rooms and in factories dealing in technical sewing. The TYPICAL TC6040G has a programmable sewing field measuring 600x400mm. The enlarged work surface allows you to work with large elements. In turn, the memory can accommodate up to 512 sewing patterns. The machine is characterized by direct drive, automatic lubrication system, automatic thread trimmer and a wiper (thread wiper). The stepper motor guarantees the precision of the device control. The machine sews at 2700 stitches per minute.

Parameters

EDGE CUTTER:
yes

MAX SEWING SPEED:
2700

CLEARANCE UNDER SEWING FOOT:
10mm

DRIVE:
Direct-drive

CONTROL PANEL:
yes

NEEDLE SYSTEM:
DPx17, 125-160 Nm

LUBRICATION SYSTEM:
AUTOMATIC

STITCH TYPE:
Lockstitch 301

DIRECT DRIVE

The machine has been equipped with a very strong direct-drive with increased torque.

PERFECT SEAMS

Automatic thread trimmer and wiper in conjunction with a precise stepper motor, guarantee perfect seam quality

PROGRAMMABLE PRESSERFOOT HEIGHT

The possibility of programming the height of the presser foot lift guarantees the perfect seams even in the case of sewing in thickening areas.

MODERN CONTROL PANEL

The touch control panel allows you to create and manage sewing patterns. The device memory holds up to 512 patterns that can be exported and imported using a USB memory device

ADDITIONAL DEVICE

TYPICAL TC3020G sewing machine can be additionally equipped with accessories for sewing on labels. The manufacturer offers two types - flip clamp (with FZ symbol) and sliding device (with CH symbol).

Application

Automotive

Trousers

Skirt

Woman Jacket

Sport Jacket

Baseball Jacket

Jeans

Bags

Classic shoes
